Toyota was one company that truly believed in the hydrogen future

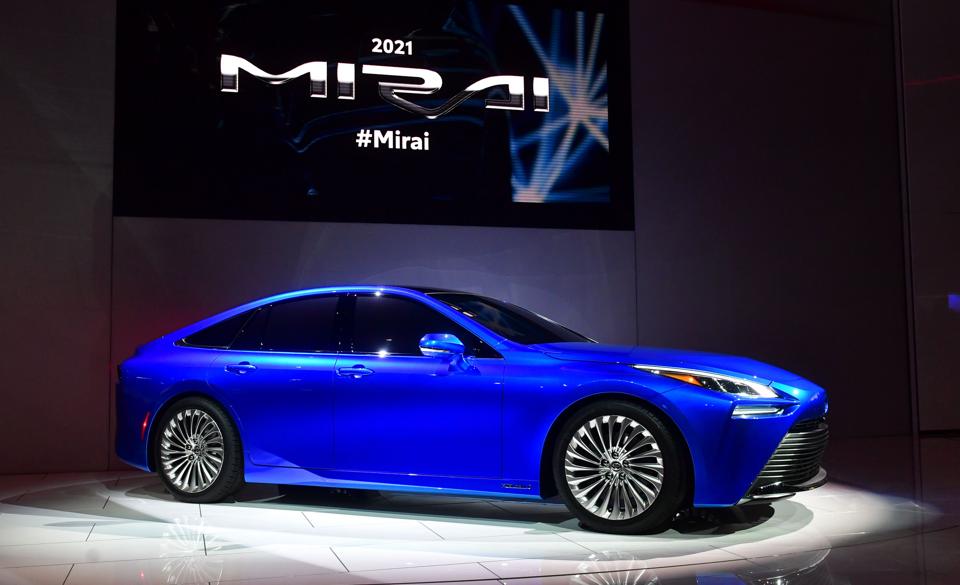

Toyota was one company that truly believed in the hydrogen future, and produced the very credible FCV-R concept in 2011 that developed into the Mirai, which became commercially available in 2015. A second generation will be released in 2021. Honda has also produced a couple of fuel cell vehicles, the Clarity Fuel Cell and FCX Clarity. Hyundai has the Tucson Fuel Cell. So there are some choices available, and these vehicles are all quite viable for everyday usage, with the Mirai offering a range of 312 miles on a tank, and the Honda Clarity Fuel Cell managing a very healthy 366 miles.
So why haven’t hydrogen fuel cell vehicles (FCVs) taken off in the same way as BEVs, considering their convenience? June 2019 could be the month that scrawled the writing on the wall. No sooner had a chemical plant producing hyrdogen in Santa Clara exploded, leaving FCV users in California short of fuel, but just a few days later a refuelling station in Sandvika, Norway also went up in flames. This really brought home the truth that hydrogen can be a dangerously explosive gas – as if we didn’t know it already. I haven’t heard of any cases of the cars themselves detonating, and the fuel tanks are now Kevlar-lined to protect against this explosive possibility. But it was hardly a confidence-inspiring series of events.
However, the safety concerns are not the main reason why hydrogen is a far inferior option for personal transportation than BEVs. If one of your main goals is to save the planet, BEVs are considerably more energy efficient than FCVs, when you take into account the whole series of steps between power generation and propulsion. With a BEV, once the electricity is generated – hopefully from a renewable source – the supply of this to your vehicle charging location loses about 5%. The charging and discharging of the battery then lose another 10%. Finally, the motor wastes another 5% driving the vehicle. That makes for a total loss of 20%.
With a hydrogen fuel cell, however, you first have to convert the electricity to hydrogen via electrolysis, which is only 75% efficient. Then the gas has to be compressed, chilled and transported, which loses another 10%. The fuel cell process of converting hydrogen back to electricity is only 60% efficient, after which you have the same 5% loss from driving the vehicle motor as for a BEV. The grand total is a 62% loss – more than three times as much. Or, to put it another way, for every kW of electricity supply, you get 800W for a BEV, but only 380W for an FCV – less than half as much. That’s a huge inefficiency if you’re hoping for a greener future, and doesn’t even take into account the fact that 95% of hydrogen is currently generated from fossil fuel sources.
Nevertheless, hydrogen still has niches where its main strengths – lightness and quick refuelling – give it a clear advantage. While you can fit your personal driving lifestyle around strategic battery charging stops, this is not ideal for a commercial vehicle that needs to run for very long periods and distances with only short waits to refuel. The weight of batteries for eight hours of continual usage would also be prohibitive in a train, for example. So, for industrial vehicles, hydrogen seems like a viable option, despite the inefficiency. Nevertheless, in the UK, there were only ten hydrogen-powered buses in service in March 2019, alongside 155 electric ones (with more arriving) and 3,669 hybrid ones. But a hydrogen double-decker is also coming into service in London, with hydrogen diggers and trains also already in use. Stock market darling Nikola Motor is working on hydrogen semi-trailer trucks alongside electric and hybrid variants.
But for personal car users, it’s no contest. Hydrogen evangelists are still arguing that FCVs are the future of personal transport and the technology will take off in 2020. It’s likely that FCV energy supply-chain efficiency will be improved over time and more renewable energy sources used in hydrogen production. However, considering the number of BEVs already on the road, FCVs have lost this battle already and will never catch up. A BEV is a viable form of personal transportation right now in most developed Western nations. There are lots of options with over 200 miles of range, and Tesla TSLA has even hit 400 miles. There are charging points springing up all the time, with more than twice as many EV charging points in the UK as petrol stations. The battle for the future of green personal transportation is over, and battery electric vehicles have already won.
